door opener mechanism motors
| Image | Title | Description | Documents | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

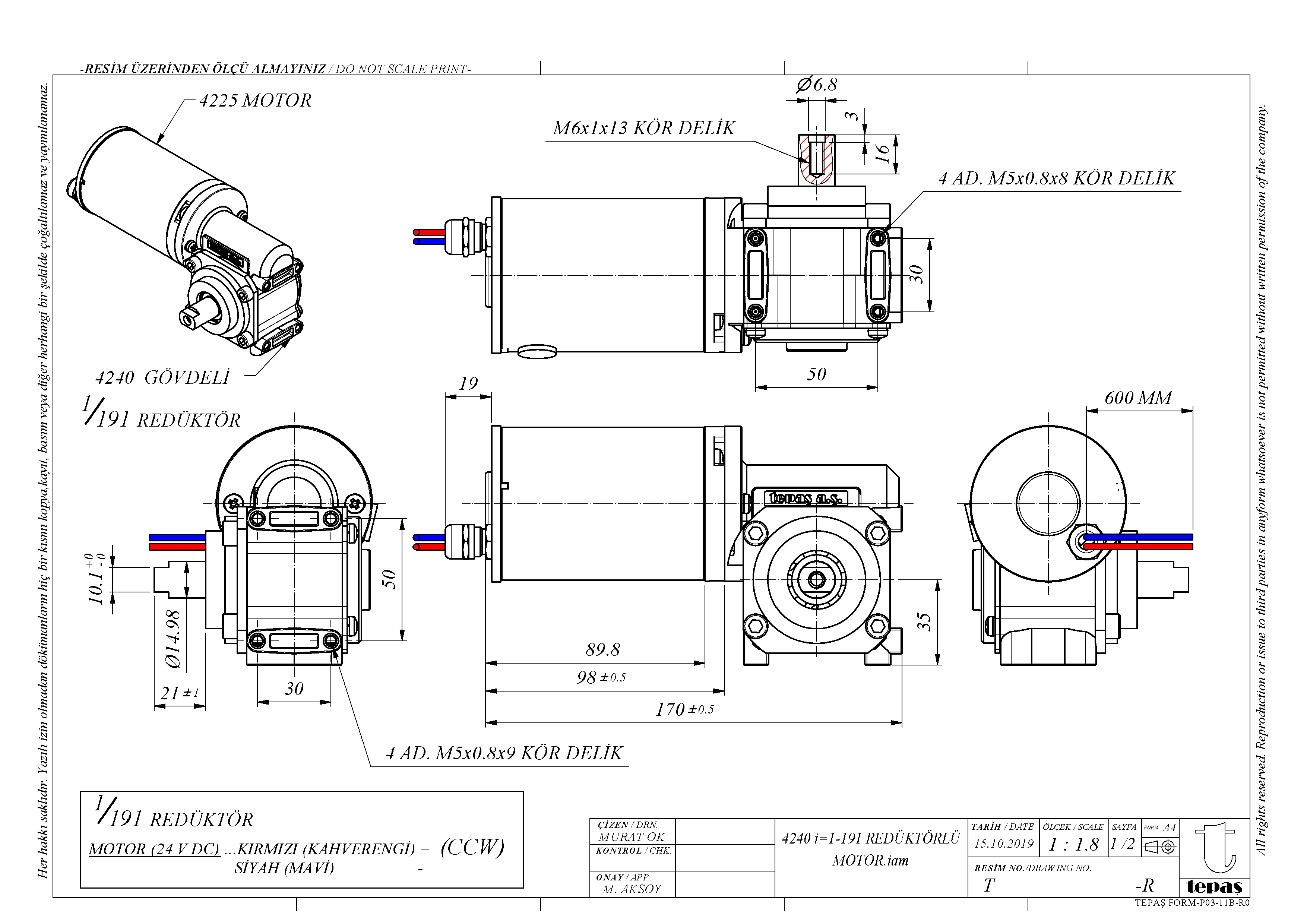

Permanent Magnet DC Motor with reduction box and encoder (4240 Type, 1/191, 24VDC) |
Thanks to the high reduction, the reducer shaft rotates at 15 rpm and provides high torque. It is suitable for door opening-closing automation. Reduction: 1/191 Encoder: 1/100 2-channels
|
|
||||||||||||||||||
|

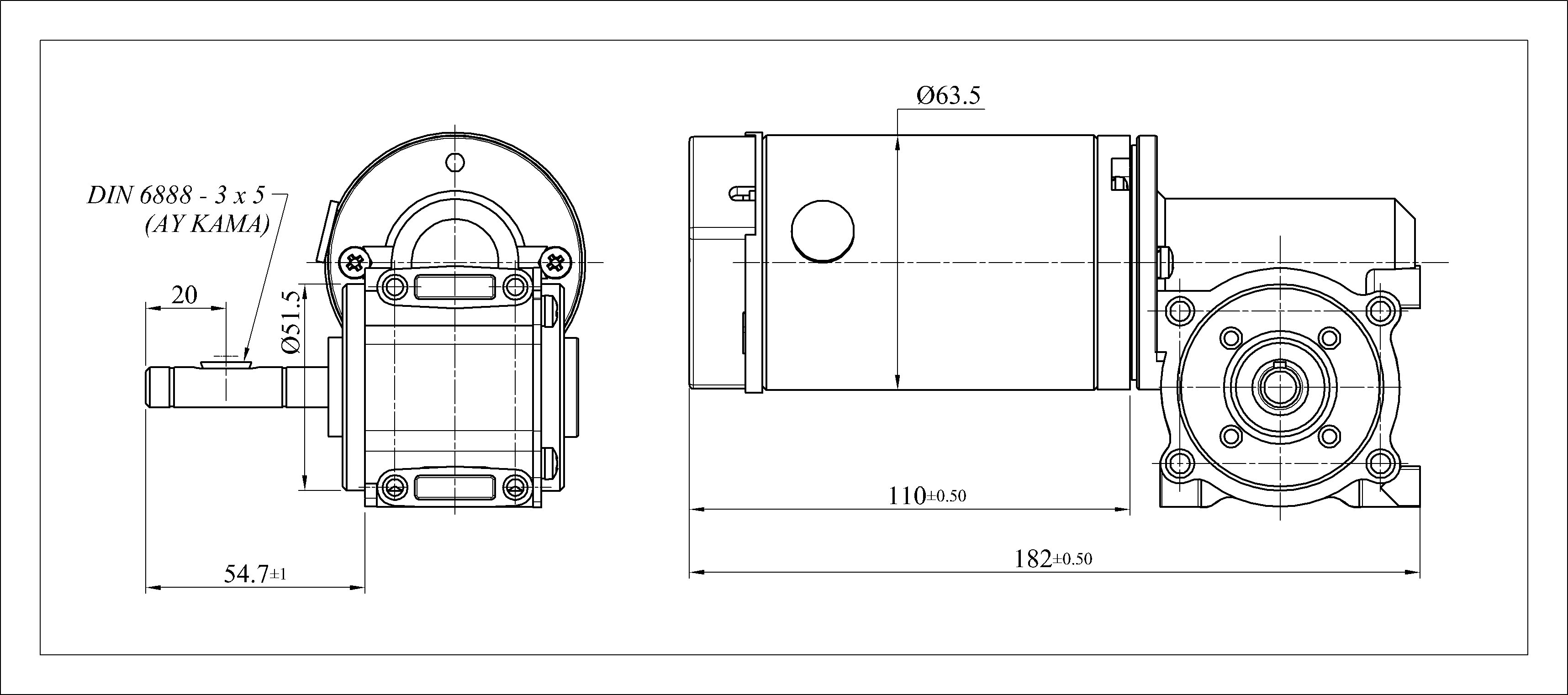

Permanent Magnet DC Motor with reduction box and encoder (Type 4225 PL100) |
Motor field windings are replaced by permanent magnets. Motor performs higher starting moments with respect to AC motors,at variable and constant speeds. Speed-Torque performance is linear.Motors are integrated with 20,40 or 100 pulse/rev optical encoders. Used on Elevator Door Opener Mechanism Motors, Automatic Doors, Valve Drivers, Welding Machines, Automation Projects, Packing Systems and Industrial Applications. Reduction : 1/27 Encoder : 2 Channel - 100 Pulse
|
|||||||||||||||||||
|
Permanent Magnet DC Motor with reduction box and encoder (Type 4225 and Type 4240) |
Motor field windings are replaced by permanent magnets. Motor performs higher starting moments with respect to AC motors,at variable and constant speeds. Speed-Torque performance is linear.Motors are integrated with 20,40 or 100 pulse/rev optical encoders. Used on Packing Systems, Automatic Doors, Valve Drivers, Welding Machines, Automation Projects
|
|
||||||||||||||||||
|

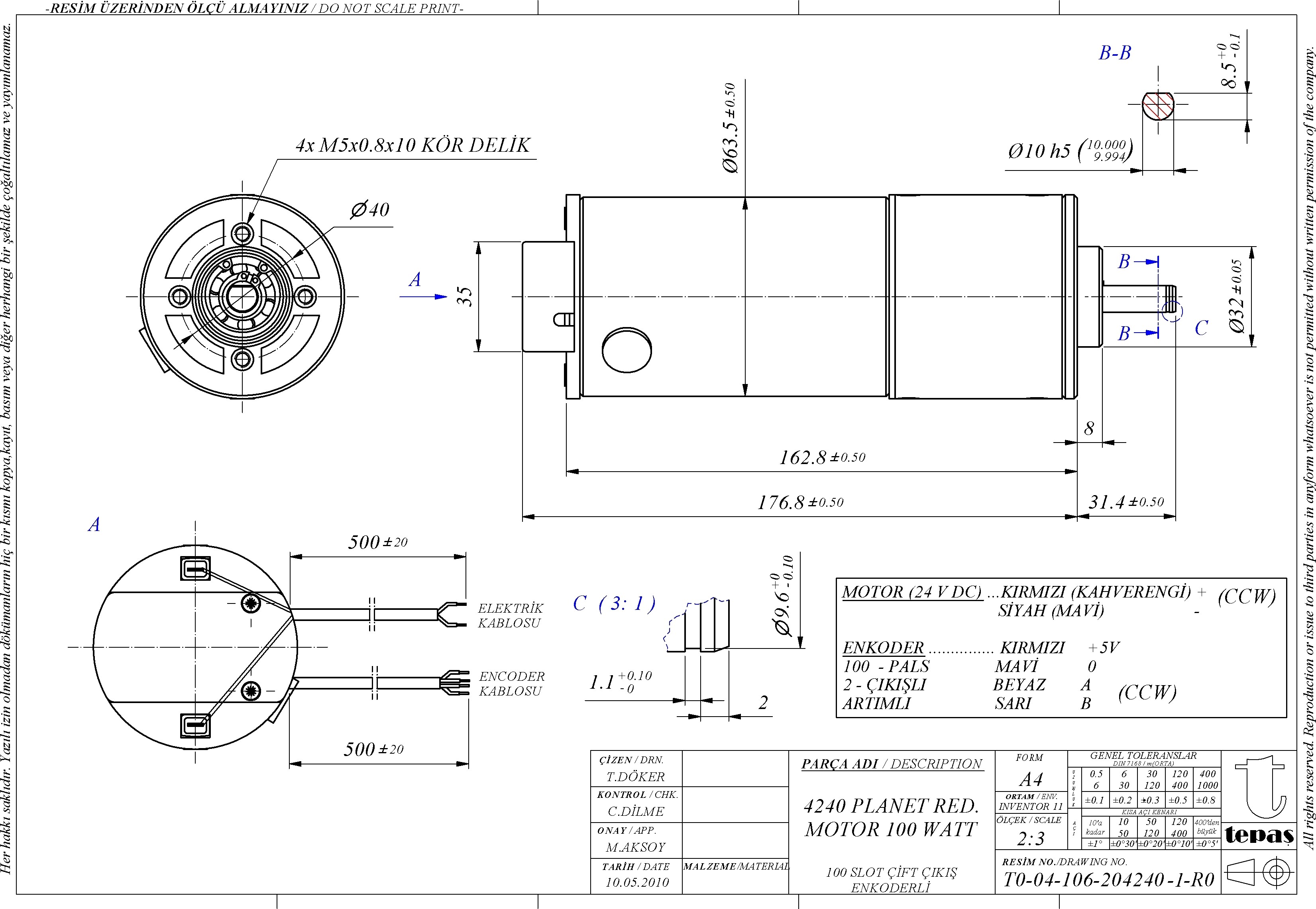

Planetary Gear PM DC Motor (Type 4240) |
Motor field windings are replaced by permanent magnets. Motor performs higher starting moments with respect to AC motors,at variable and constant speeds. Speed-Torque performance is linear.Motors are integrated with 20,40 or 100 pulse/rev optical encoders.Folding Doors for Lift's Cabin and Industrial Applications. Reduction : 1/11
|
|||||||||||||||||||
|

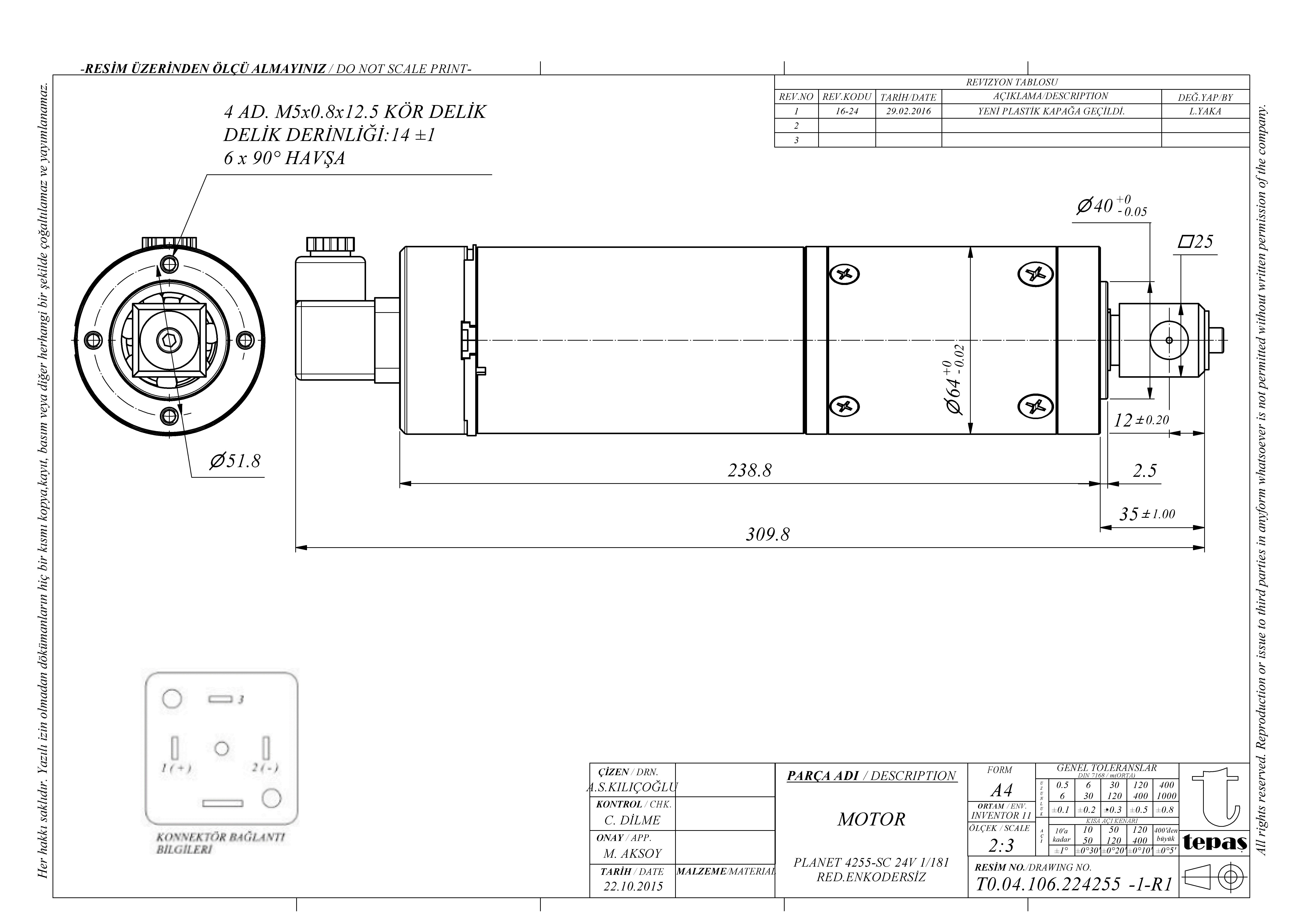

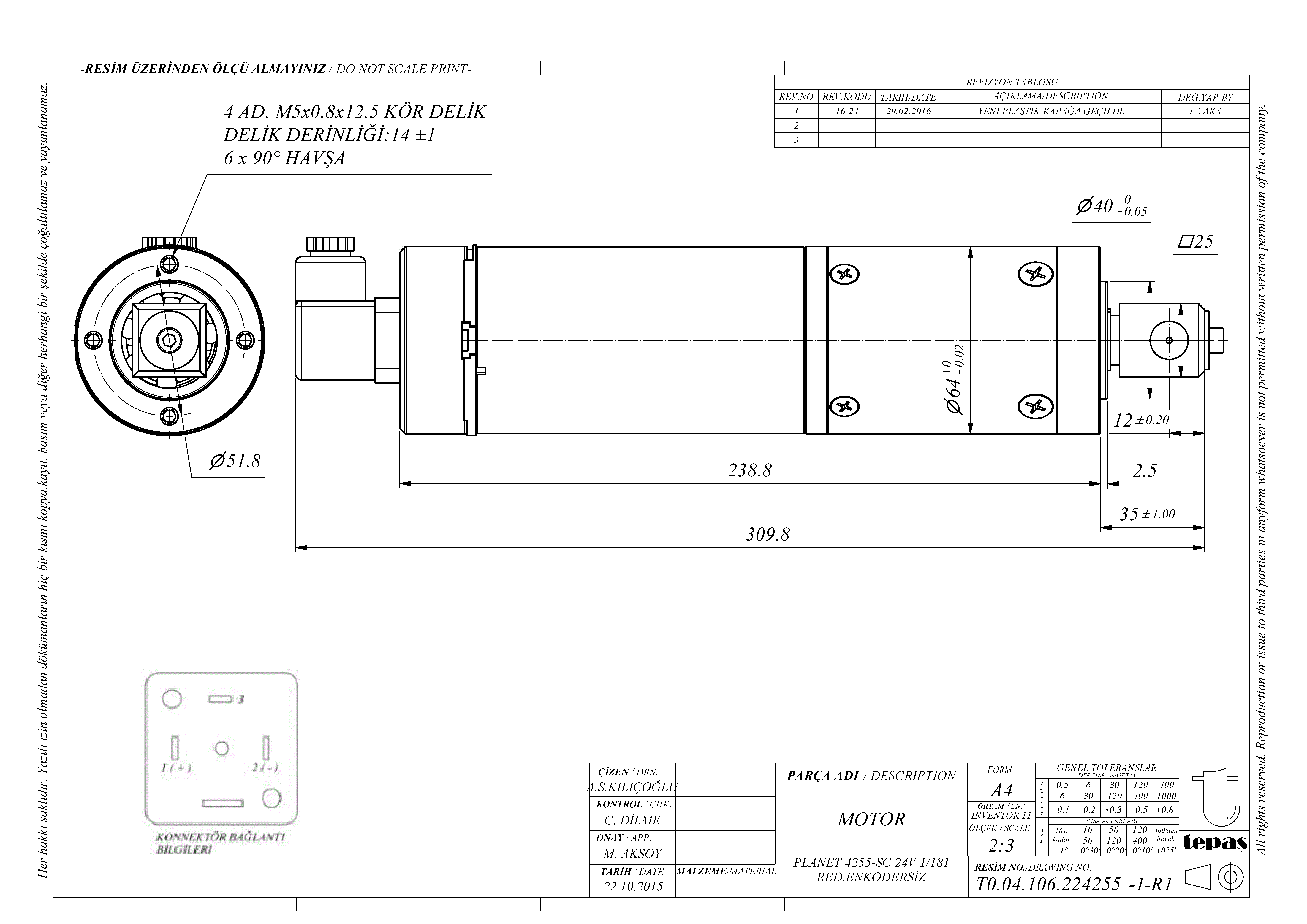

Planet Type Gearbox with PM DC Motor (Type 4255) |
For automatic rolling of the top-covers (tarpaulin) used in the back of the trucks. Reduction : 1/181 (3 stage planet)
|
|
||||||||||||||||||
|

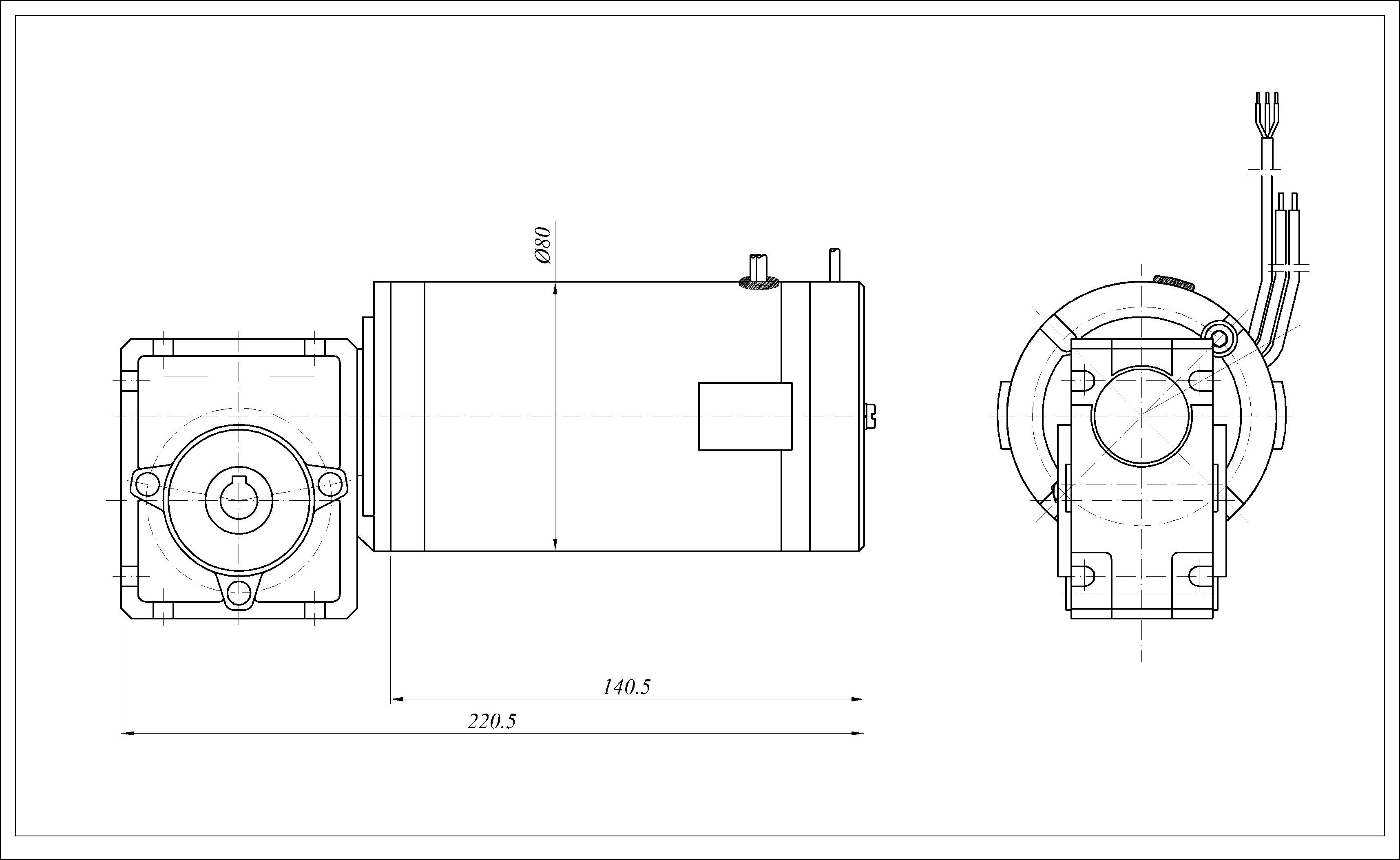

Permanent Magnet DC Motor with reduction box and encoder (Type 5540) |
Motor field windings are replaced by permanent magnets. Motor performs higher starting moments with respect to AC motors,at variable and constant speeds.Speed-Torque performance is linear.Motors are integrated with 20,40 or 100 pulse/rev optical encoders. Used on packing Systems, Automatic Doors, Valve Drivers, Welding Machines, Automation Projects.
|
|
||||||||||||||||||
|

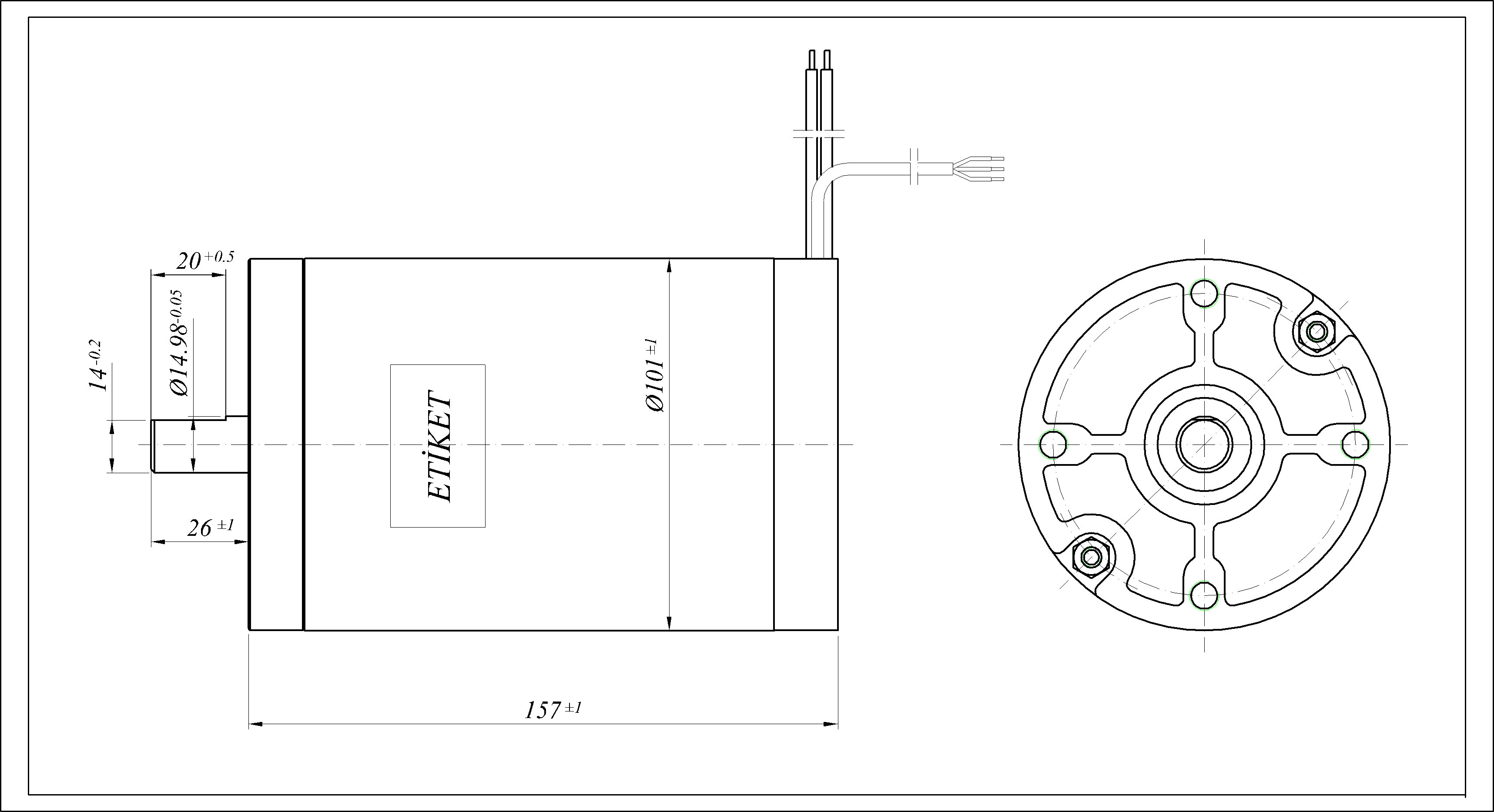

Permanent Magnet DC Motor with encoder (Type 7640) |
Motor field windings are replaced by permanent magnets. Motor performs higher starting moments with respect to AC motors,at variable and constant speeds. Speed-Torque performance is linear.Motors are integrated with 20,40 or 100 pulse/rev optical encoders. Used on Packing Systems, Automatic Doors, Valve Drivers, Welding Machines, Automation Projects.
|
|
