Military Products

Auxilary Power Units (APU)

Auxiliary Power Units are produced for use on military and commercial vehicles.They consist of two units of one cylinder diesel motor driven alternator,electronic control and rectifier unit,air filtration system,fuel system,heating and cooling system. When the vehicle is stationary and necessary power is drawn from the batteries, APU automatically charges the batteries allowing the main engine to be turned off.This reduces the fuel consumption and wear of idling the vehicle’s main engine and also reduces detectability (low thermal and infrared signitures) during combat operations,thus providing the ability to operate in silent watch operational mode.

Auxilary Power Units (APU)

Auxiliary Power Units are produced for use on military and commercial vehicles.They consist of two units of one cylinder diesel motor driven alternator,electronic control and rectifier unit,air filtration system,fuel system,heating and cooling system. When the vehicle is stationary and necessary power is drawn from the batteries, APU automatically charges the batteries allowing the main engine to be turned off.This reduces the fuel consumption and wear of idling the vehicle’s main engine and also reduces detectability (low thermal and infrared signitures) during combat operations,thus providing the ability to operate in silent watch operational mode.

Title	Description	Documents
4 kW 28 Vdc Auxilary Power Unit (248.213960) Water cooled	From the document link you can download the detailed product brochure.	Katolog_Apu 4kW.pdf (553.06 KB)
10 kW Auxilary power Unit (213.231540) Air cooled	From the document link you can download the detailed product brochure.	Katolog_Apu 10kWhavaSoğutmalı.pdf (515.3 KB)
10 kW 28 Vdc Auxilary Power Unit (213.231540) Water cooled	From the document link you can download the detailed product brochure.	Katolog_Apu 10kWsuSoğutmalı.pdf (532.54 KB)
12 kW Auxilary Power Unit (247.231540) Water cooled	From the document link you can download the detailed product brochure.	Katolog_Apu 12kWsu.pdf (508.06 KB)
17 kW 28 Vdc Auxilary Power Unit (251.224030) Water cooleed	From the document link you can download the detailed product brochure.	Katolog_Apu 17kWsu.pdf (530.53 KB)

Special Purpose Military Products

Title	Description	Documents

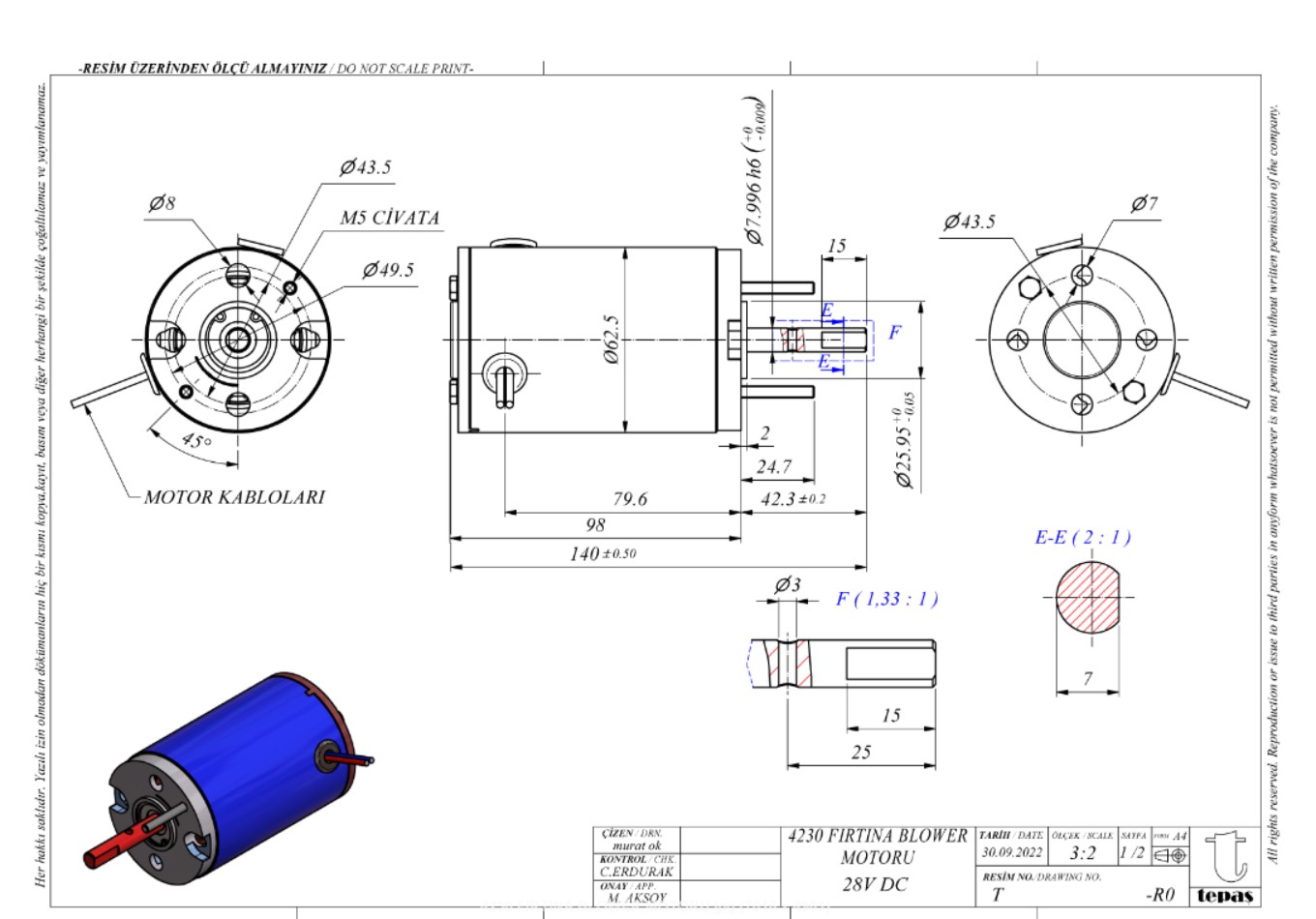

Fırtına Tank Blower Motor	NSN: 2930-27-017-8468	4230 Fırtına Blower Motoru.jpg (152.44 KB)
Gun Barrel Lock Motor	NSN : 1230-KK-000-8360

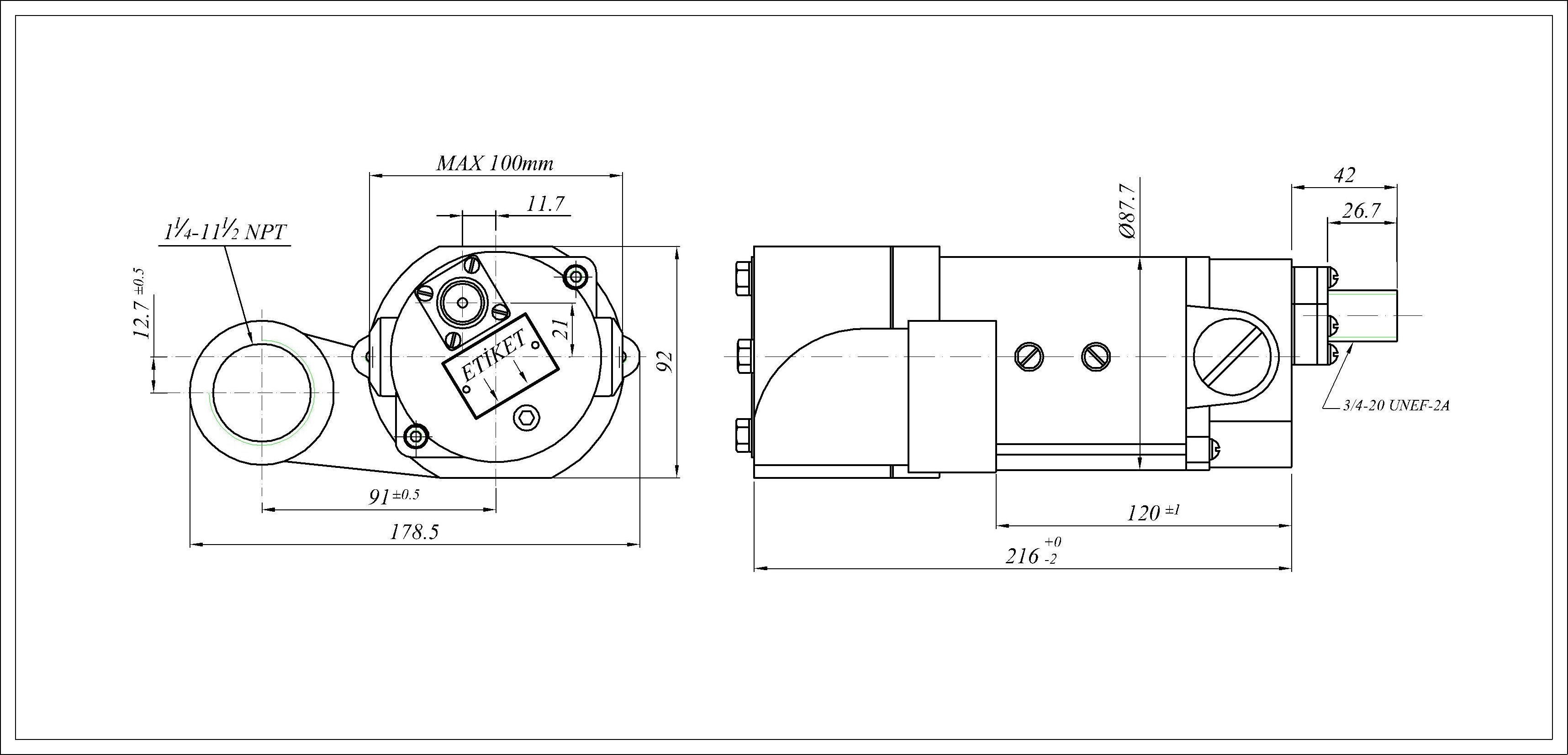

Diesel Fuel Pump	NSN : 2910-12-195-1310 / 2910-12-143-0203 / 6105-27-009-5867 Motor drives two individual pumps. Pumps are vane-type and rotor/stator parts parts are manufactured from hardened steel. Used on self propelled Howitzer T-52 fuel transfer applications.	mazot_pompası.jpg (418.33 KB)
Scavenge Blower with Brushed DC motor (Tip 12057 compund)	NSN : 2940-12-302-4020 / 2940-27-008-3361 Electrical motorbody, housing and fan parts are made of aluminum. The rotor shaft is supported by two high speed bearings.This universal motor can be used in industry where high air-flow is required. In military applications, it is used in Leopard I and II Tanks, for removal of dust and debris from the air intake of the engine. It is protected against Electro magnetic radiation (EMI).	kaba_toz_atma.jpg (682.96 KB)
Scavenge Blower with Brushless Motor (28 Vdc)	NSN : 2940-12-333-6903 Used in upgrading project of Leopard I and II Tanks
Driver of Mechanical Aiming Computer	NSN : 6105-00-535-7757 DC motor with serial brake, used on M48 and M60 tanks.	telemetre.jpg (322.63 KB)
Magazine Motor	The motor has 4-poles employing NdFeB magnets, producing high torque values. Equipped with a electromechanical brake coupled to motor shaft,which can be released manually.The motor is designed to be coupled to the magazine gearbox.Used on M52 (T155 Fırtına) Howitzer.	magazin_motoru(2).jpg (535.46 KB)
Machine Gun Charging Motor	Initial charging mechanism drive motor of 12.7 mm machine gun used in self propelled STINGER project.Confirms to shock,vibration,EMI/ML STD 461C,IP 67 standards.	makinalı_tüfek_kurma(3).jpg (404.55 KB)

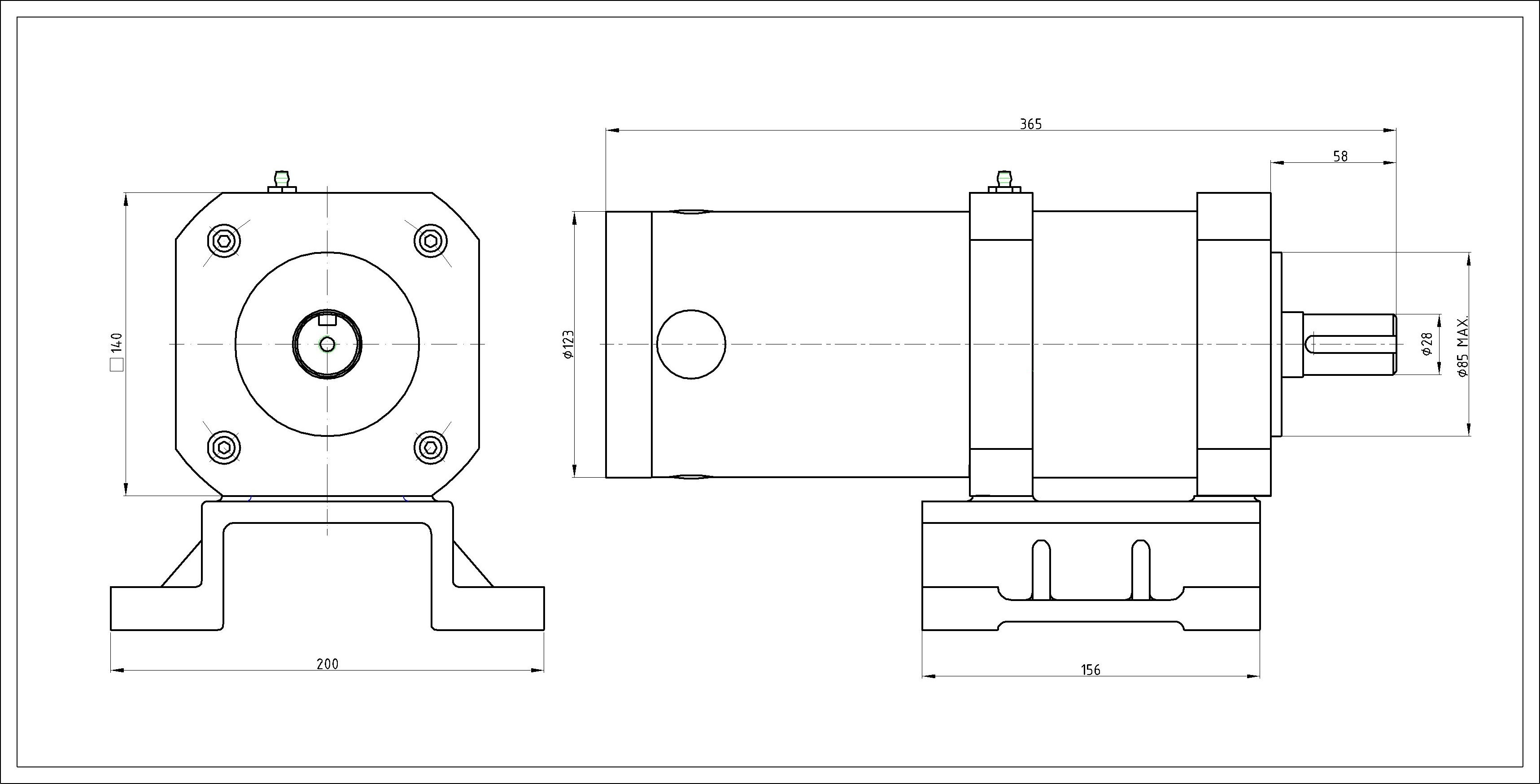

Drive Motor for 105 mm Gun	This is a 1.3 kW DC motor integrated with 1/85 reduction ratio planetary gearbox. Used on key charging mechanism drive on 105 mm gun.	top_kama_açma.jpg (440.14 KB)
Hydrolic Pump Motor	NSN : 6105-27-064-3269 The pump is used on: 35 mm Modernize Çekili Top Sistemi	HPM Technical Drawing-min.jpg (741.99 KB)
Ammunition Feeding System Drive Motor	NSN: 6105-27-064-3267 The pump is used on: 35 mm Modernize Çekili Top Sistemi	MBSM Technical Drawing-min.jpg (732.45 KB)

Alternators

Image	Title	Description	Documents
	220A Alternator (N1301)	NSN : 2920-01-047-9551 From the document link you can download the detailed product brochure.	Katalog_Alternatör_220amp.pdf (316.95 KB)

Fan Motors

Image	Title	Description	Documents
	Fan Assembly	NSN : 4140-01-042-0661 / 4140-27-012-6823 Housing and yoke are injection molded aluminium.The rotor shaft is supported by two ball bearings. The unit is used on M113, GZPT and military combat vehicles for personnel ventilation.The universal type commutator motor is used in industrial applications with speed control.
	Ammunition Smoke Extarction Fan	NSN : 4140-27-016-6667 Housing protection class is IP 65 and air flow rate is1500 m³/hour. It is equipped with a vane-axial fan driven by a DC motor and it exhausts gunsmoke. Used on M155 Self Propelled Howitzer.
	NBC Blower Unit	NSN : 4235-KK-014-4851 Used for protection against Nuclear Biological and Chemical (NBC) weapons.
	NBC Fan Motor	NSN : 6105-12-158-1674 Used in Leopard I and Leopard II tanks.
	Ventilating Motor	NSN : 6105-12-148-2962 Used on Leopard Tanks cupola for ventilating purposes.
	Fan Motor	NSN : 6105-12-154-1097 High Speed DC motor with ball bearings.Housing protection class is IP00 .Used on Leopard Tanks,turret section,ventilator system, personnel and water heating system.

Cupola Motors

Title	Description	Documents
Cupola Drive Motor	NSN : 3010-27-008-3354 This is a permanent magnet motor with steel housing and a gearbox with reduction ratio of 1/12,The rotor shaft,wormgear,and the pinion are supported by high quality roller bearings.The motor is used on M52 Howitzers for adjusting the elevation of the gun and traversing of the cupola.	kule_döndürme_motoru.jpg (578.66 KB)
M55 Turret Drive Motor	NSN : 1005-00-629-4355 This motor is wound field coil type compound and has shaft extending at both sides. It is used on four barrel 12.7 mm machine gun for elevation and traverse motion of turret.	m55_kule_çevirme_motoru.jpg (467.42 KB)
Cupola Hydraulic Drive Motor	NSN : 6105-01-030-3907 The motor housing is made from steel and yokes are made from aluminium alloy. All metal parts are protected by plating.Housing protection class is IP 54.Motor drives a hydraulic pump and provides the rotation of cupola.The motor is used on Armoured Vehicle DAF	cupola_hidrolik_motor(1).jpg (418.11 KB)
Cupola Traverse DC Motor	Compound wound DC Motor used on M113 Armoured personnel Vehicles. DC motor provides the traverse motion of the cupola on armoured vehicles.	kule_yan_dönüs_dc_motor.jpg (635.5 KB)

Bilge Pumps

Image	Title	Description	Documents
	Bilge Pump 165 lt	NSN : 4320-00-679-9643 Pumps are manufactured as per MIL-P-62156B .Operates fully submerged with 28 Vdc and can run dry for a limited duration.The motor housing is made from steel and yokes are made from chromate plated aluminium alloy. Motor shaft and bolts are made from stainless steel.Waterproofness is provided by a gafite-ceramic packing. The Pump is used on: M113 APC, 6x6 Armoured Vehicle, Anfibic Cobra Vehicles.	sintine_pompası_165.jpg (572.14 KB)
	Bilge Pump 450 lt	NSN : 4320-00-871-2834 Pumps are manufactured as per military standards .Operates fully submerged with 28 Vdc and can run dry for a limited duration.The motor housing is made from steel and yokes are made from chromate plated aluminium alloy. Motor shaft and bolts are made fromf stainless steel.Waterproofness is provided by a gafite-ceramic packing. The pump is used on: M48 and M60 Tanks APC, M52 (T155) Fırtına	sintine_pmpası_450.jpg (512.8 KB)
